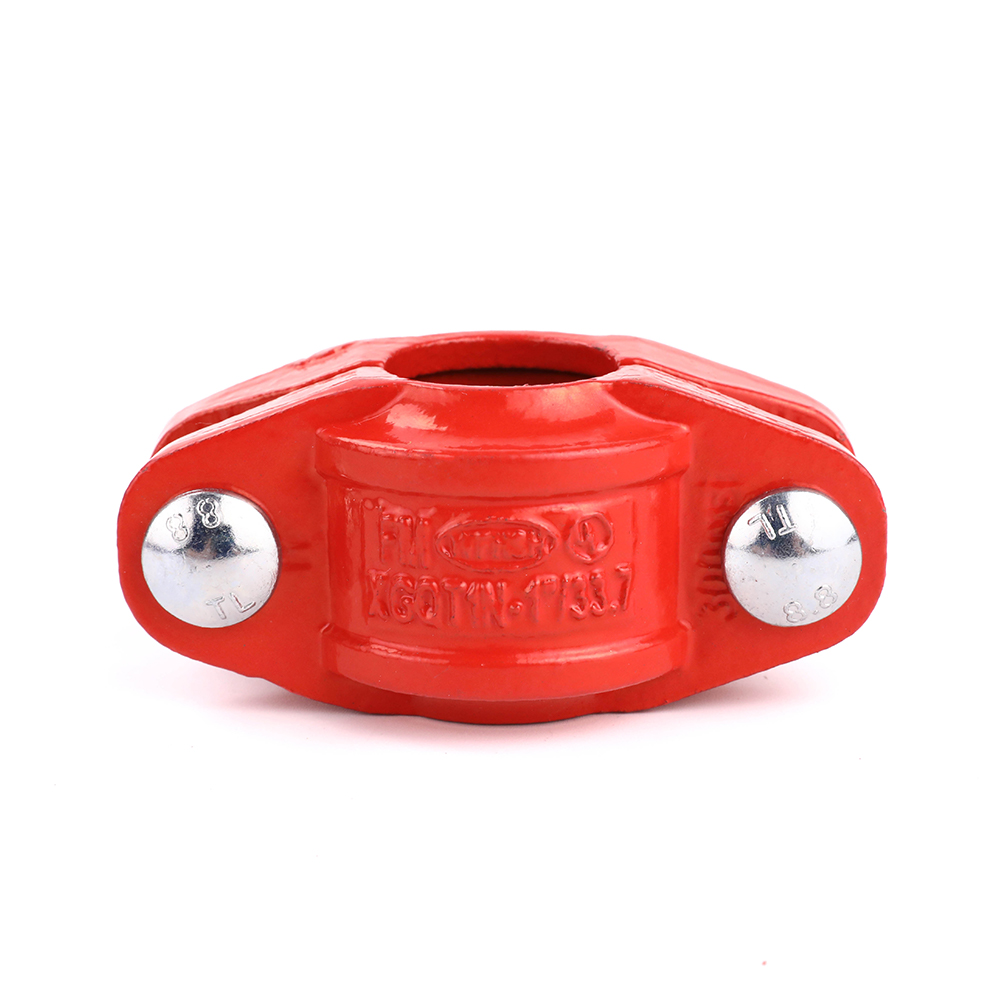

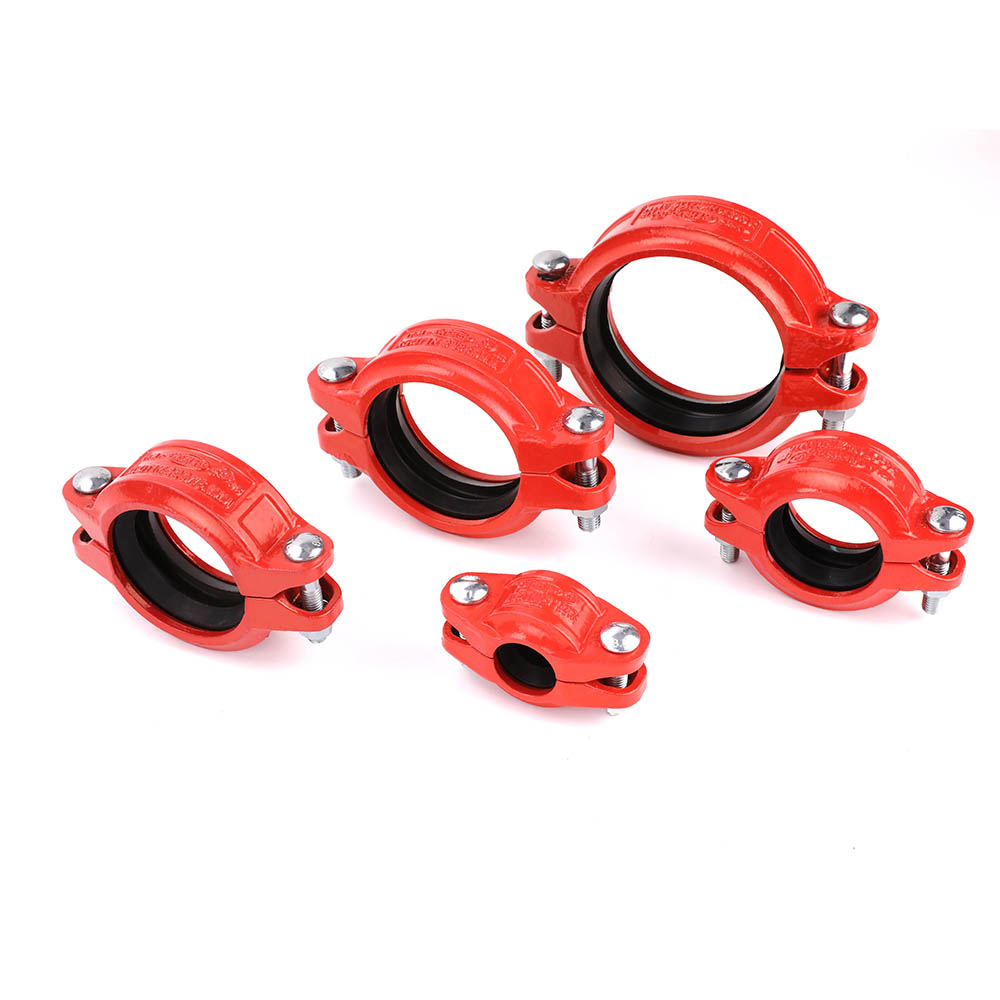

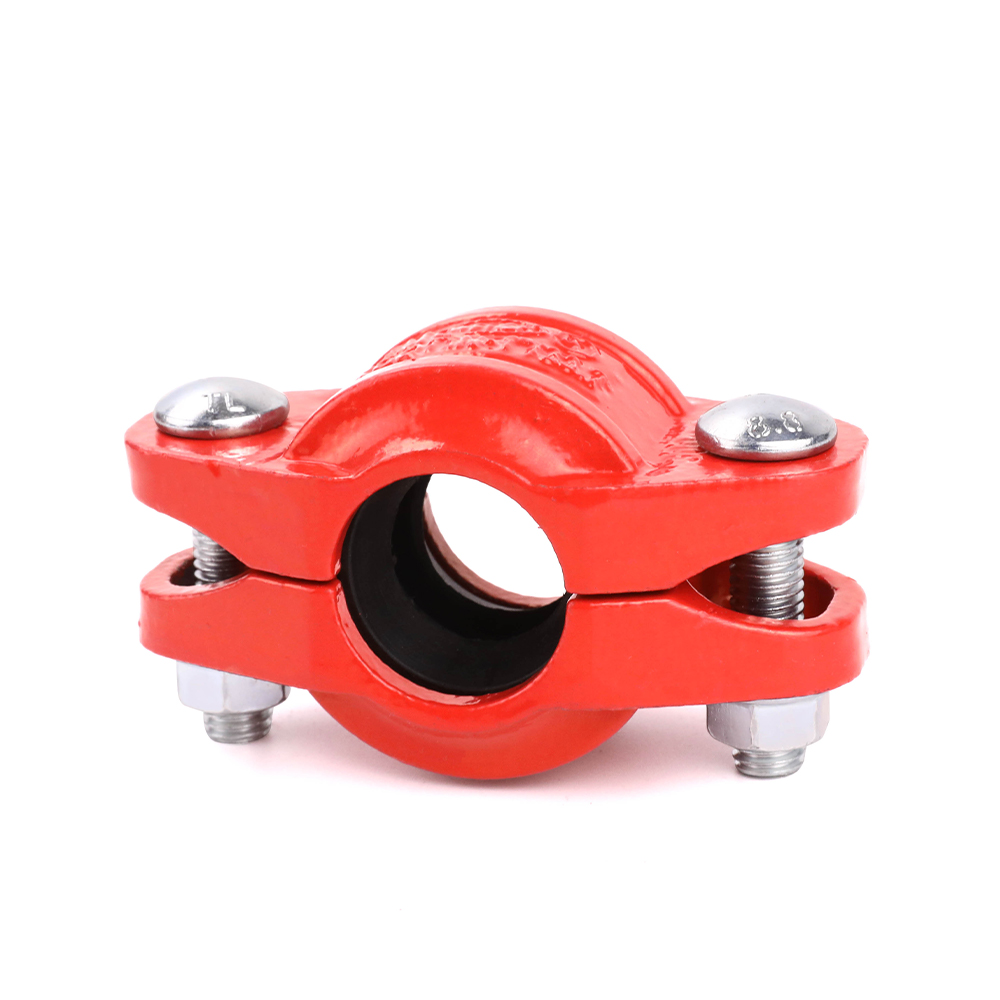

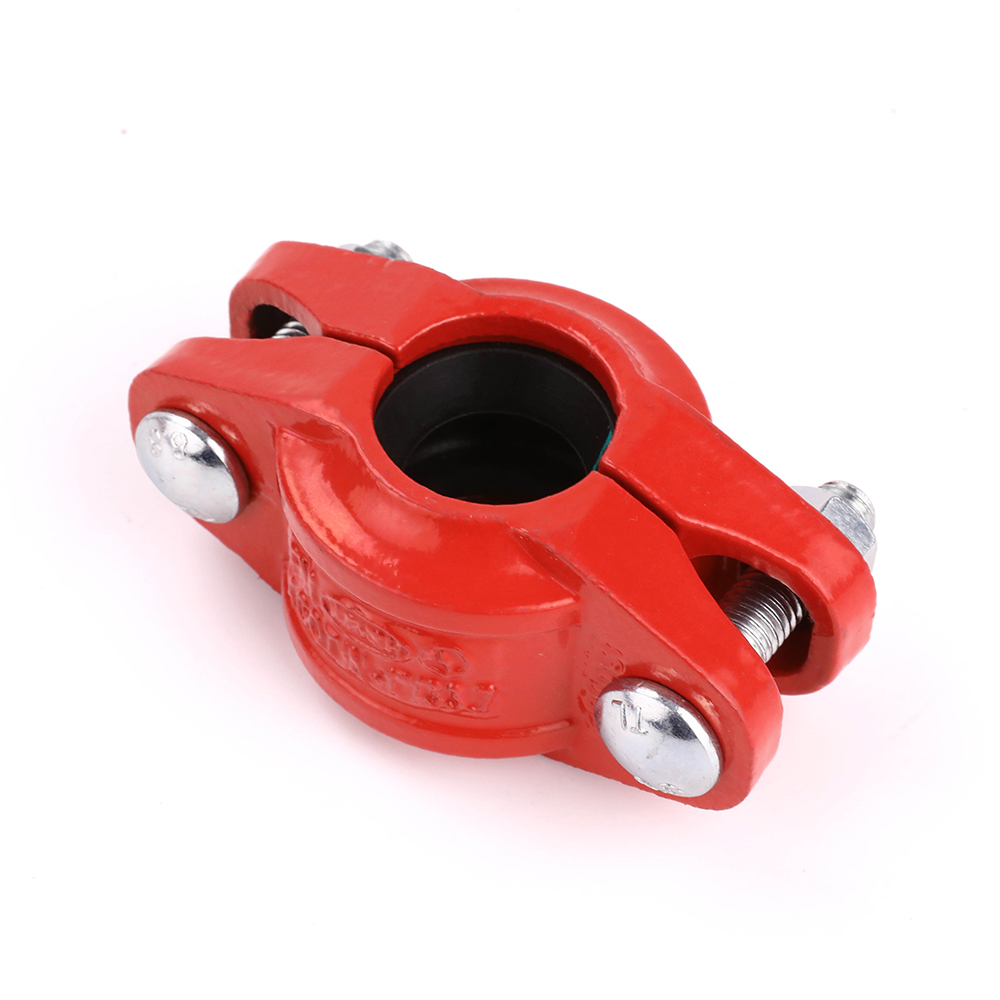

Grooved Flexible Coupling
Grooved Flexible Coupling Grooved Flexible Coupling Grooved Flexible Coupling Grooved Flexible Coupling Grooved Flexible Coupling

Grooved Flexible Coupling

Material: Ductile iron such as ASTM A536 GRADE 65-45-12, QT450-10
Size Available: 1" - 24"
Surface Treatment: hot- dip galvanized, Epoxy coated
Available Color: Red, Orange, Blue, Gray, Sliver(OEM Color supported)

Send email to us
Specification
Nominal
Size
mm/in
Pipe O.D
mm
Working
Pressure
PSI/Mpa

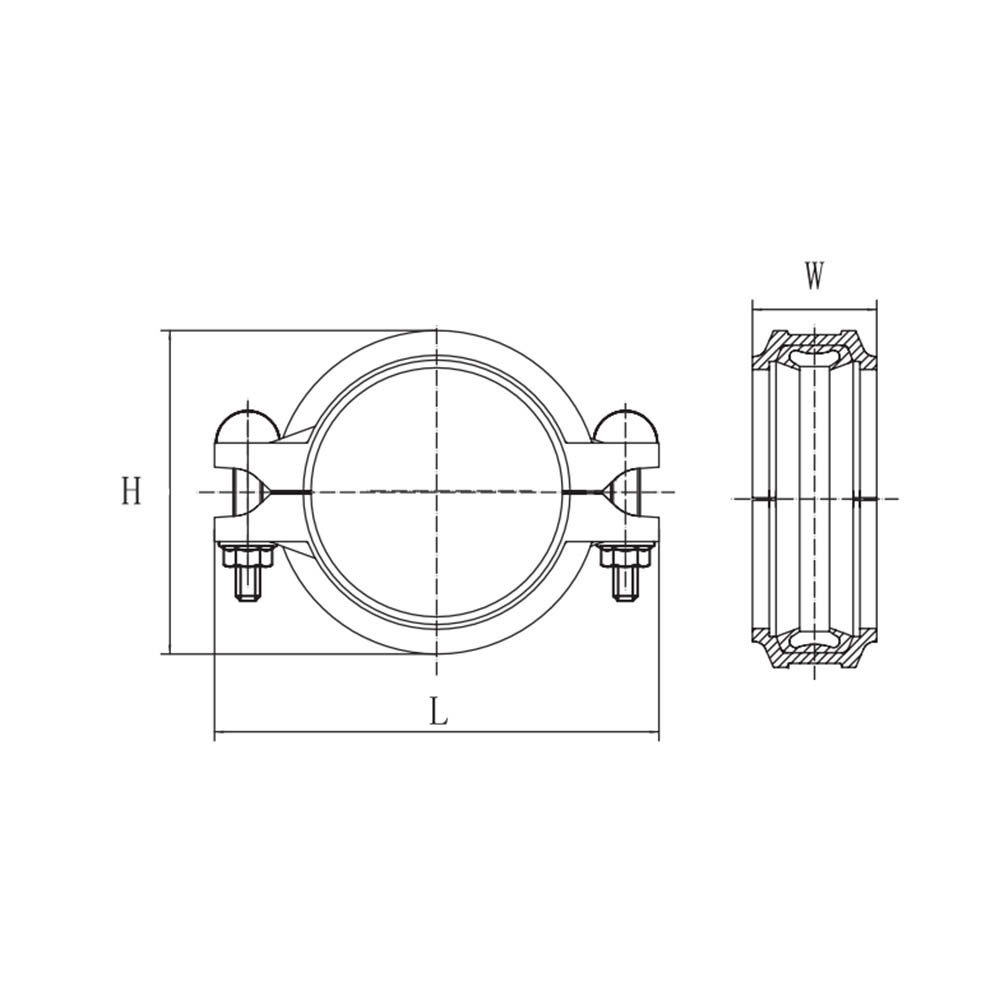

Dimensions mm
Bolt Size
 Certificate
L
H
W
NO.-Size mm
25/1
33.7
300/2.07
97
58
45.5
M10x45
FM UL
32/11/4
42.4
300/2.07
104
66
45.5
M10x45
FM UL
40/11/2
48.3
300/2.07
114
72
45.5
M10x45
FM UL
50/2
60.3
300/2.07
128
85
45.5
M10x55
FM UL
65/21/2
73.0
300/2.07
137
94
45.5
M10x55
FM UL
65/21/2
76.1
300/2.07
142
98
45.5
M10x55
FM UL
80/3
88.9
300/2.07
164
112
46
M12x65
FM UL
100/4
108.0
300/2.07
187
134
50
M12x65
FM UL
100/4
114.3
300/2.07
190
138
50
M12x65
FM UL
125/5
133.0
300/2.07
212
160
50
M12x75
FM UL
125/5
139.7
300/2.07
223
168
50
M12x75
FM UL
125/5
141.3
300/2.07
226
170
50
M12x75
FM UL
150/6
159.0
300/2.07
244
188
50
M12x75
FM UL
150/6
165.1
300/2.07
247
194
50
M12x75
FM UL
150/6
168.3
300/2.07
250
196
50
M12x75
FM UL
200/8
219.1
300/2.07
320
254
60
M16x90
FM UL
250/10
273.0
300/2.07
408
316
65
M20x120
FM UL
300/12
323.9
300/2.07
460
372
65
M22x140
FM UL
Shandong Zhihua Pipe Industry Co., Ltd.

Shandong Zhihua Pipe Industry Co., Ltd.

Zhihua is located in the beautiful international kite capital -- Weifang City is a collection of research and development, production, and sales of fire fittings, fire extinguishers, and other products of high-tech enterprises. The company was founded in 2007, after years of struggle, and enterprise-scale has been rapid development. Professional Grooved Flexible Coupling Suppliers and Manufacturers in China. At present,The company has passed the ISO9001 quality management system IS014001 environmental management system, and OHSAS18001 occupational health and safety certification, all products of the company through the fire voluntary certification, part of the products through the United States FM, UL, SG Sand CE certification.

As Grooved Flexible Coupling Factory, zhihua offer all size Grooved Flexible Coupling custom. In order to improve product quality, increase production capacity and product specifications, the company began to introduce a large number of advanced production equipment in 2010 including ZZ416 automatic molding line 6 medium frequency induction 3T furnace 4 sets, Fadik 180T sand treatment system, Nidic dust removal system and a series of advanced equipment. This equipment not only stabilizes product quality but also improves production efficiency and reduces the labor intensity of workers. In order to ensure the stability of product quality, the introduction of imported spectrometers, advanced furnace carbon and silicon analyzer, metallographic image analyzer, cast iron laboratory analysis equipment, product pressure, tension, wear test equipment, and the establishment of various professional product testing laboratories.

  • 20230303-111835
  • 20230303-111855
  • Certification
  • Certification
  • Certification

Leave Your Message

Send
PRODUCTS CATEGORIES
Grooved Rigid Coupling Grooved Rigid Coupling
Grooved Flexible Coupling Grooved Flexible Coupling
Angle Pad Coupling Angle Pad Coupling
Grooved 90° Elbow Grooved 90° Elbow
Grooved Equal Tee Grooved Equal Tee
Grooved Reducing Tee Grooved Reducing Tee
Threaded Reducing Tee Threaded Reducing Tee
Grooved Mechanical Tee Grooved Mechanical Tee
Threaded Mechanical Tee Threaded Mechanical Tee
U-bolted Theaded Mechanical Tee U-bolted Theaded Mechanical Tee
Grooved Eccentric Reducer Grooved Eccentric Reducer
Grooved Concentric Reducer Grooved Concentric Reducer
Grooved Flexible Coupling Features
Grooved flexible couplings connect rotating shafts, allowing for the transmission of torque and rotational movement. These couplings have a grooved design that allows for flexibility, which helps compensate for misalignments, absorbs shock and vibration, and reduces noise.
Some common application scenarios for grooved flexible couplings include.
Industrial machinery: Grooved flexible couplings are used extensively in industrial machinery applications, such as pumps, compressors, and conveyor systems, where they help to maintain precise alignment between rotating shafts and reduce stress on equipment.
HVAC systems: Grooved flexible couplings are used in HVAC systems, particularly in large commercial buildings, to connect pumps, fans, and other equipment. They help to reduce vibration and noise, which can improve the comfort of occupants.
Marine applications: Grooved flexible couplings are also used in marine applications, such as on boats and ships, to connect shafts and absorb shock and vibration from the engine and propeller.
