Grooved Pipe Fittings in Dry Pipe Systems: Technical Overview

1. Introduction

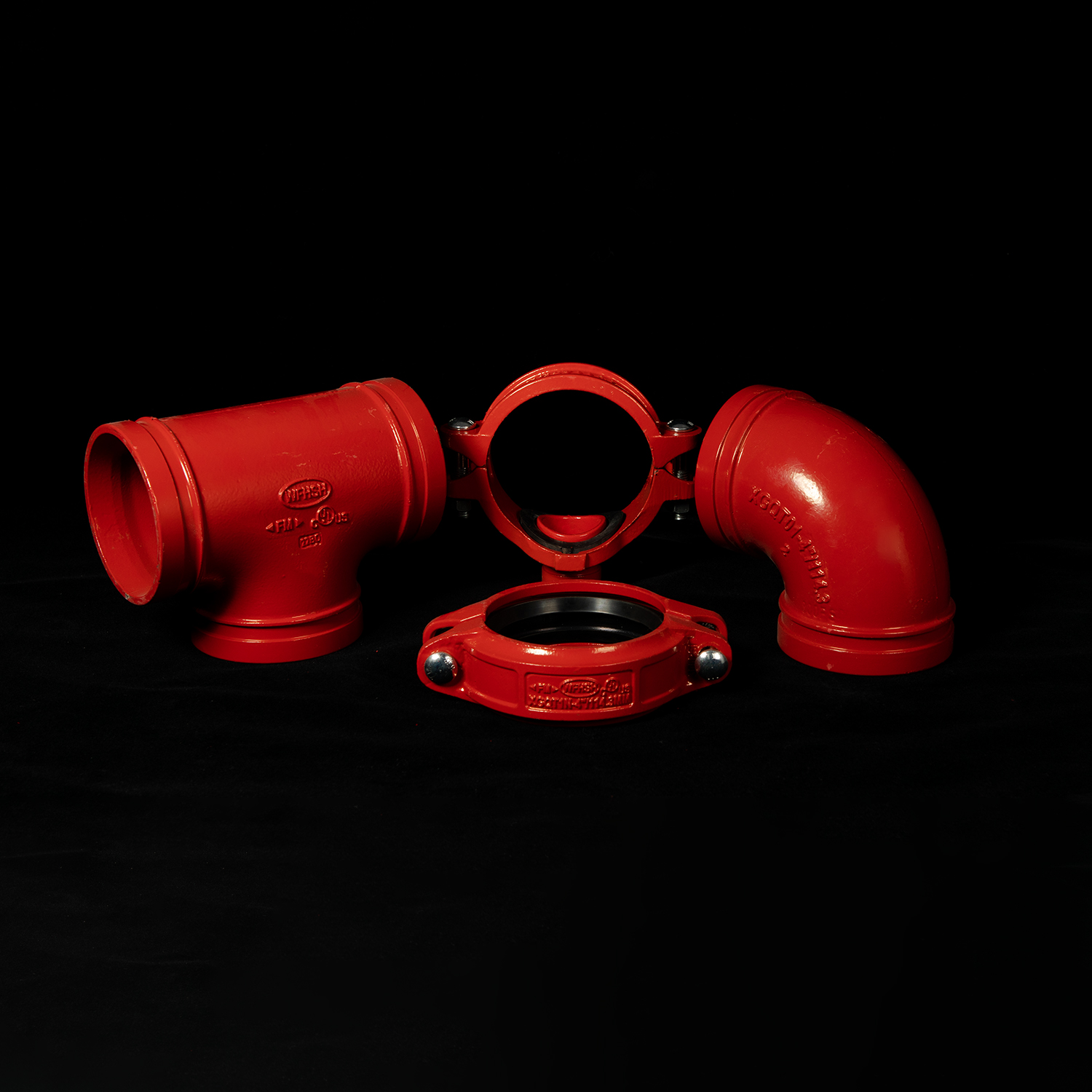

Grooved pipe fittings, including elbows, tees, and couplings, are widely used in dry-pipe systems due to their ease of installation, durability, and leak-resistant design. These fittings are typically made from malleable or ductile iron, ensuring structural integrity under varying pressures.

2. Key Components & Applications

Elbows (90°, 11.25°) – Facilitate directional changes with minimal pressure loss.

Tees & Mechanical Tees – Enable branch connections without welding, reducing installation time.

Rigid Couplings – Provide secure, vibration-resistant joints.

Dry-pipe systems (where pipes are initially air-filled to prevent freezing) benefit from grooved fittings’ quick assembly and maintenance advantages.

3. Manufacturing & Quality Control

Leading manufacturers employ electric-furnace smelting and rigorous quality checks to ensure corrosion resistance and pressure tolerance. Standards like ANSI B16.9 and UL/FM certifications are common.

4. Advantages

Speed: No welding or threading required.

Safety: Leak-proof grooves enhance system reliability.

Adaptability: Compatible with carbon steel, stainless steel, and cast iron pipes.

5. Conclusion

Grooved fittings optimize dry-pipe systems by balancing efficiency, safety, and cost-effectiveness. Their modular design aligns with modern piping demands.
